SATCOP AIS 140+IRNSS
The AIS 140 or the Intelligent Transportation System (ITS) is a set of requirements that the government has mandated to be put into place in all public transportation systems namely buses and taxis among others.
The requirements have put an onus on not just OEMs but also aftermarket players to bring in a system that will improve safety critical parts in the Indian mobility.

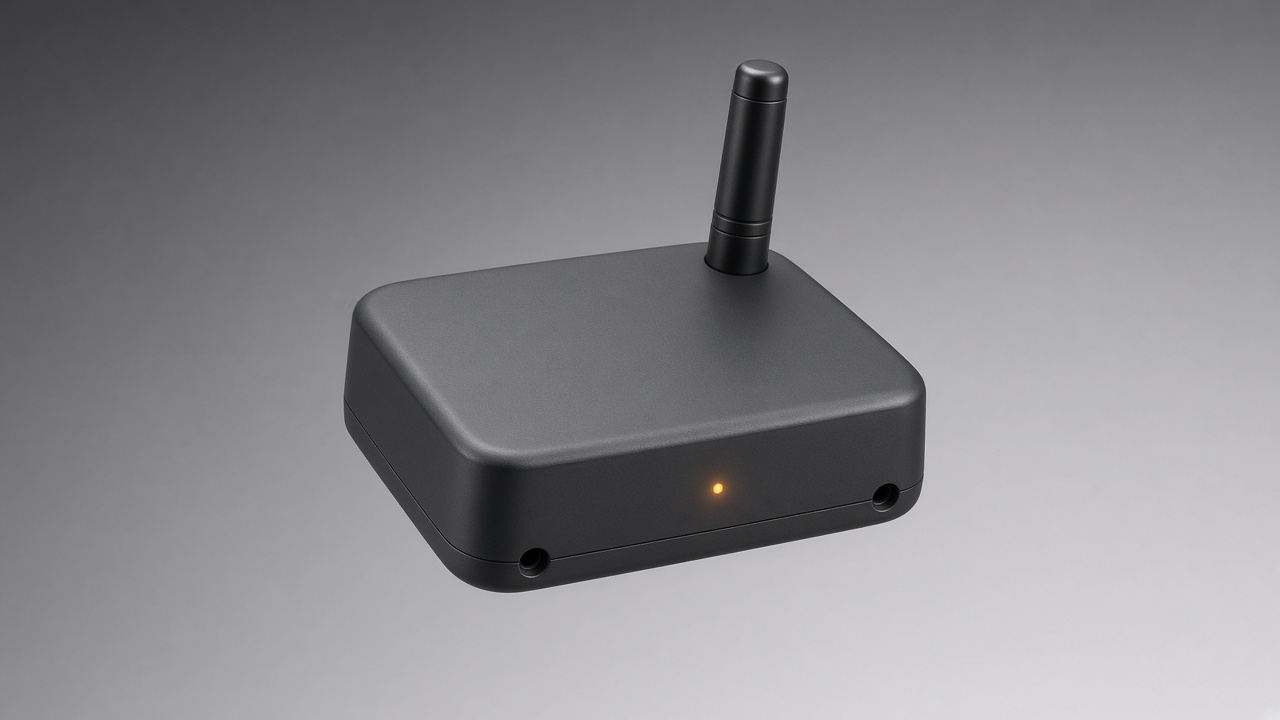

SATCOP AIS 140 device has been designed and developed in house to adhere and meet the standards of AIS 140 as laid down by ARAI and has been physically tested by ICAT for 60 days to qualify for and get awarded the certification.
The device also supports IRNSS (GAGAN, the Indian satellite-based augmentation system.) besides Global Navigation Satellite System (GNSS)
Advanced Features
Key Features
- IP 65 Compliant ABS Body.
- Quad band Class 12 GPRS Module.
- Multi-GNSS GPS, GLONASS and IRNSS with AGPS support.
- Embedded (internal) GPS & GPRS Antenna.
- RS-232 Port (this device can be used as remote data logger).
- 3 Axis Accelerometer. *
- 3 Axis Gyroscope. *
- Fuel sensor integration. *
- RF-ID reader (for driver authentication). *
- Mi-Fare card reader (for driver tracking in vehicle or student tracking in school bus). *
- Isolated Dedicated Ignition and AC Input.
- 4 Digital Inputs, 2 Digital Output and 2 Analog Input
- Vehicle Immobilization through SMS or Server.
- Alert: Ignition ON/OFF/Door Open/ Low Battery/ Box Tampering
- External Power Cut Alarm.
- SOS/Panic Alert.
- Vehicle Battery low alert.
- Driver behaviour monitoring using Accelerometer and Gyroscope (Harsh breaking, Harsh acceleration alerts).
- Offline tracking through SMS (in case of no internet connection available).
- Offline storage of data up to 1 month. **
- Data Communication over TCP/IP protocol.
- Over the Air configuration parameters update.
- Battery Back-up up to 6 Hrs.**
Specification
Technical Specifications
| Core ARM | Cortex 32-bit |
| CPU Freq | 48MHz |
| Digital Inputs | 4 Nos. |
| Voltage levels | 0 to 1.6V Logic Low / OFF
1.7 to 40V Logic High / ON |
| Type | NAND Flash |
| Size | 16Mbit / 40000 Logs |
| Module | 2G, Quad Band |
| Frequency | 850/900/1800/1900 MHz |
| GPRS Class | Class 12/10 |
| Antenna | Internal (external optional) |
| Sim Card | Embedded Sim 1.8/3.3V |
| Protocol | FTP/HTTP/POP3/SMTP/TCP/UDP |
| Other Features | Jamming Detecton, SSL, MMS |
| GPS + GLONASS + IRNSS | GPS-1575.42 MHz,GLONASS – 1601.71 MHz IRNSS (L5) – 1176.45 MHz |
| No. Of Channels Sensitvity | 22 Tracking, 66 Acquisiton Acquisiton – 156dBm Tracking – 162dBm |
| Output Format Antenna | NMEA 0183 Internal (external optional) |
| Baud rate | 2400 to 115200 Configurable |
| Hardware Handshake | No |
| Measurement Range | +/-2g to +/- 16g |
| Resolution | 16Bit |
| Measurement Range | +/-245 to +/- 2000 dps |
| Resolution | 16Bit |
| Digital Inputs | 4 Nos. |
| Voltage levels | 0 to 1.6V Logic Low / OFF
1.7 to 40V Logic High / ON |
| Isolated Ignition Input (ACC) | |
| Isolated AC Input | |
| SOS Panic Input | 2 Wire |
| Current | Open Drain, 1A max. |
| Voltage | 0 to 30V |
| Box Tamper Switch | 1 Nos. |
